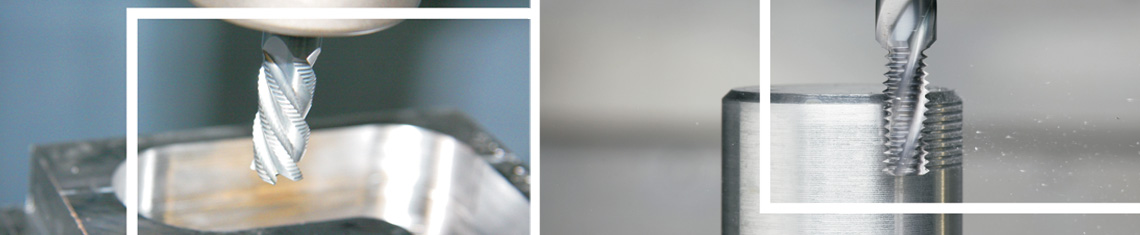

A reamer is a type of finishing tool. When we drill holes in lumps of metal, we typically use a fairly standard drill bit in either our mini-lathe or micro-mill. Drill bits do a pretty good job. If you only need a hole to pass a bolt through, or to tap with a thread, then a standard drill bit will create a suitable hole. A reamer will take a rough hole cut by a drill bit and turn it into a truely round hole of a known inner diameter.

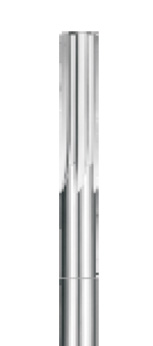

Reamer (Straigth & Helical Flute) (Coated) 4 Flute & 6 Flute

Item Code Cutting Dia. Shank Dia. Flute length Over all length
SF4RM030 3 6 15 60
SF4RM040 4 6 18 60
SF4RM050 5 6 20 60
SF6RM060 6 6 25 75
SF6RM080 8 8 30 76
SF6RM100 10 10 35 100
SF6RM120 12 12 40 100
