Rougher Mill

Rougher Mill

Rougher Mill
Quick Inquiry

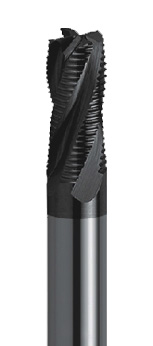

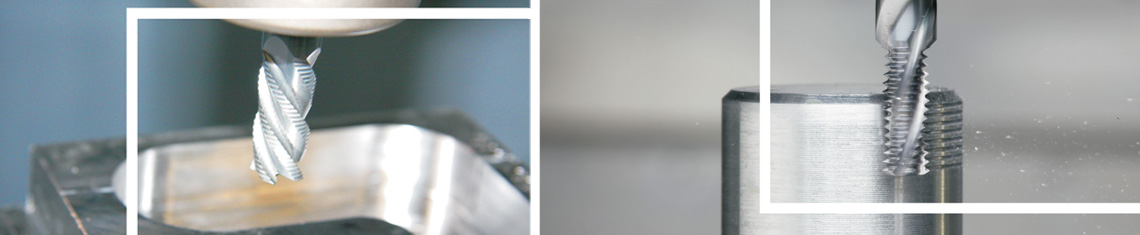

Rougher End Mills quickly remove large amounts of material. This kind of end mill utilizes a wavy tooth form cut on the periphery. These wavy teeth form many successive cutting edges producing many small chips, resulting in a relatively rough surface finish. During cutting, multiple teeth are in contact with the workpiece reducing chatter and vibration.

ROUGHER Endmill - 4 Flute. (Standard)

Item Code Cutting Dia. Shank Dia. Flute length Over all length
SF4RE050S 5 5 16 51
SF4RE060S 6 6 19 63
SF4RE080S 8 8 21 63
SF4RE100S 10 10 25 70
SF4RE120S 12 12 25 75
SF4RE140S 14 14 30 89
SF4RE160S 16 16 32 89
SF4RE180S 18 18 40 101
SF4RE200S 20 20 40 101
