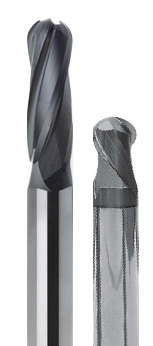

A ball nose end mill, also known as a spherical end mill or ball end mill, has a semisphere at the tool end. Ball nose end mills are used on workpieces with complex surfaces.
Standard
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| SF4BN010S |
1 |
3 |
3 |
39 |
| SF4BN015S |
1.5 |
3 |
5 |
39 |
| SF4BN020S |
2 |
3 |
7 |
39 |
| SF4BN025S |
2.5 |
3 |
8 |
39 |
| SF4BN030S |
3 |
3 |
10 |
39 |
| SF4BN040S |
4 |
4 |
16 |
51 |
| SF4BN050S |
5 |
5 |
16 |
51 |
| SF4BN060S |
6 |
6 |
19 |
63 |
| SF4BN080S |
8 |
8 |
21 |
63 |
| SF4BN100S |
10 |
10 |
22 |
70 |
| SF4BN120S |
12 |
12 |
25 |
76 |
| SF4BN140S |
14 |
14 |
30 |
89 |
| SF4BN160S |
16 |
16 |
32 |
89 |
| SF4BN180S |
18 |
18 |
35 |
101 |
| SF4BN200S |
20 |
20 |
40 |
101 |
| SF4BN250S |
25 |
25 |
40 |
101 |
Long
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| SF4BN030L |
3 |
3 |
19 |
57 |
| SF4BN040L |
4 |
4 |
19 |
57 |
| SF4BN050L |
5 |
5 |
25 |
63 |
| SF4BN060L |
6 |
6 |
28 |
76 |
| SF4BN080L |
8 |
8 |
29 |
76 |
| SF4BN100L |
10 |
10 |
32 |
76 |
| SF4BN120L |
12 |
12 |
51 |
101 |
| SF4BN140L |
14 |
14 |
57 |
127 |
| SF4BN160L |
16 |
16 |
57 |
127 |
| SF4BN180L |
18 |
18 |
57 |
127 |
| SF4BN200L |
20 |
20 |
57 |
127 |
Extra Long
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| SF4BN030X |
3 |
3 |
25 |
76 |
| SF4BN040X |
4 |
4 |
25 |
76 |
| SF4BN050X |
5 |
5 |
30 |
76 |
| SF4BN060X |
6 |
6 |
39 |
101 |
| SF4BN080X |
8 |
8 |
42 |
101 |
| SF4BN100X |
10 |
10 |
45 |
101 |
| SF4BN120X |
12 |
12 |
76 |
150 |
| SF4BN140X |
14 |
14 |
76 |
150 |
| SF4BN160X |
16 |
16 |
76 |
150 |
| SF4BN180X |
18 |
18 |
76 |
150 |
| SF4BN200X |
20 |
20 |
76 |
150 |
Flat & Ball Endmill - 2 Flute & 4 Flute (Extra Long)
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| SF4EM030XL |
3 |
3 |
28 |
101 |
| SF4EM040XL |
4 |
4 |
28 |
101 |
| SF4EM050XL |
5 |
5 |
30 |
101 |
| SF4EM060XL |
6 |
6 |
40 |
150 |
| SF4EM080XL |
8 |
8 |
42 |
150 |
| SF4EM100XL |
10 |
10 |
45 |
150 |
| SF4EM100XXL |
10 |
10 |
65 |
200 |
| SF4EM120XL |
12 |
12 |
76 |
200 |
| SF4EM120XXL |
12 |
12 |
76 |
250 |
| SF4EM120XXL |
12 |
12 |
76 |
300 |
| SF4EM160XL |
16 |
16 |
76 |
200 |
| SF4EM200XL |
20 |
20 |
76 |
200 |
| SF4EM250XL |
25 |
25 |
76 |
200 |
| SF4EM250XXL |
25 |
25 |
76 |
250 |
| SF4EM250XXL |
25 |
25 |
76 |
300 |
Ball Endmill
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| SF4BN030XL |
3 |
3 |
28 |
101 |
| SF4BN040XL |
4 |
4 |
28 |
101 |
| SF4BN050XL |
5 |
5 |
30 |
101 |
| SF4BN060XL |
6 |
6 |
40 |
150 |
| SF4BN080XL |
8 |
8 |
42 |
150 |
| SF4BN100XL |
10 |
10 |
45 |
150 |
| SF4BN100XXL |
10 |
10 |
65 |
200 |
| SF4BN120XL |
12 |
12 |
76 |
200 |
| SF4BN120XXL |
12 |
12 |
76 |
250 |
| SF4BN120XXL |
12 |
12 |
76 |
300 |
| SF4BN160XL |
16 |
16 |
76 |
200 |
| SF4BN200XL |
20 |
20 |
76 |
200 |
| SF4BN250XL |
25 |
25 |
76 |
200 |
| SF4BN250XXL |
25 |
25 |
76 |
250 |
| SF4BN250XXL |
25 |
25 |
76 |
300 |
