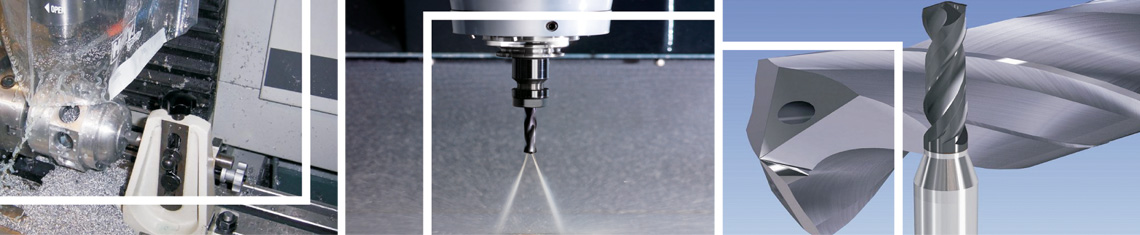

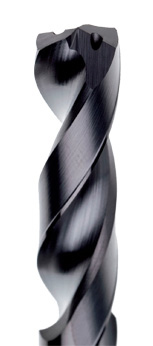

Thorough Coolant drill bits allow coolant to push chippings back up the hole in deep drilling applications whilst reducing the friction and temperature inflicted on the tool. Thorough Coolant drills are primarily for drilling Alloyed and Non alloyed Steel, Aluminium, Soft Stainless Steel, Copper, Soft Cast Iron, Plastics, etc.
HP Drill 3D
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| |
D |
d |
L2 |
L1 |
| S3DHP030TC |
3.0 MM |
6 |
20 |
62 |
| S3DHP031TC to 037TC |
3.1 to 3.7 |
6 |
20 |
62 |
| S3DHP038TC to 047TC |
3.8 to 4.7 |
6 |
24 |
66 |
| S3DHP048TC to 060TC |
4.8 to 6.0 |
6 |
28 |
66 |
| S3DHP061TC to 070TC |
6.1 to 7.0 |
8 |
34 |
79 |
| S3DHP071TC to 080TC |
7.1 to 8.0 |
8 |
41 |
79 |
| S3DHP081TC to 100TC |
8.1 to 10.0 |
10 |
47 |
89 |
| S3DHP101TC to 120TC |
10.1 to 12.0 |
12 |
55 |
102 |
| S3DHP121TC to 140TC |
12.1 to 14.0 |
14 |
60 |
107 |
| S3DHP141TC to 160TC |
14.1 to 16.0 |
16 |
65 |
115 |
| S3DHP161TC to 180TC |
16.1 to 18.0 |
18 |
73 |
123 |
| S3DHP181TC to 200TC |
18.1 to 20.0 |
20 |
79 |
131 |
HP Drill 5D
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| |
D |
d |
L2 |
L1 |
| S5DHP030TC |
3.0 MM |
6 |
28 |
66 |
| S5DHP031TC to 037TC |
3.1 to 3.7 |
6 |
28 |
66 |
| S5DHP038TC to 047TC |
3.8 to 4.7 |
6 |
36 |
74 |
| S5DHP048TC to 060TC |
4.8 to 6.0 |
6 |
44 |
82 |
| S5DHP061TC to 070TC |
6.1 to 7.0 |
8 |
53 |
91 |
| S5DHP071TC to 080TC |
7.1 to 8.0 |
8 |
53 |
91 |
| S5DHP081TC to 100TC |
8.1 to 10.0 |
10 |
61 |
103 |
| S5DHP101TC to 120TC |
10.1 to 12.0 |
12 |
71 |
118 |
| S5DHP121TC to 140TC |
12.1 to 14.0 |
14 |
77 |
124 |
| S5DHP141TC to 160TC |
14.1 to 16.0 |
16 |
83 |
133 |
| S5DHP161TC to 180TC |
16.1 to 18.0 |
18 |
93 |
143 |
| S5DHP181TC to 200TC |
18.1 to 20.0 |
20 |
101 |
153 |
