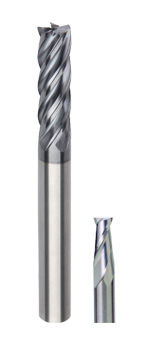

An end mill is one of the indispensable tools in the milling processing. The end mill has edges in the side surface and the bottom surface. The fundamental usage is that the end mill is rotated, and makes a plane of a material in the right-and-left direction or a plane of a bottom side of the end mill. We can make various shapes of mecahnical parts with the end mill.
Standard
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| SF4EM010S |
1 |
3 |
3 |
39 |
| SF4EM015S |
1.5 |
3 |
5 |
39 |
| SF4EM020S |
2 |
3 |
7 |
39 |
| SF4EM025S |
2.5 |
3 |
8 |
39 |
| SF4EM030S |
3 |
3 |
10 |
39 |
| SF4EM040S |
4 |
4 |
16 |
51 |
| SF4EM050S |
5 |
5 |
16 |
51 |
| SF4EM060S |
6 |
6 |
19 |
63 |
| SF4EM080S |
8 |
8 |
21 |
63 |
| SF4EM100S |
10 |
10 |
22 |
70 |
| SF4EM120S |
12 |
12 |
25 |
76 |
| SF4EM140S |
14 |
14 |
30 |
89 |
| SF4EM160S |
16 |
16 |
32 |
89 |
| SF4EM180S |
18 |
18 |
35 |
101 |
| SF4EM200S |
20 |
20 |
40 |
101 |
| SF4EM250S |
25 |
25 |
40 |
101 |
Long
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| SF4EM030L |
3 |
3 |
19 |
57 |
| SF4EM040L |
4 |
4 |
19 |
57 |
| SF4EM050L |
5 |
5 |
25 |
63 |
| SF4EM060L |
6 |
6 |
28 |
76 |
| SF4EM080L |
8 |
8 |
29 |
76 |
| SF4EM100L |
10 |
10 |
32 |
76 |
| SF4EM120L |
12 |
12 |
51 |
101 |
| SF4EM140L |
14 |
14 |
57 |
127 |
| SF4EM160L |
16 |
16 |
57 |
127 |
| SF4EM180L |
18 |
18 |
57 |
127 |
| SF4EM200L |
20 |
20 |
57 |
127 |
Extra Long
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| SF4EM030X |
3 |
3 |
25 |
76 |
| SF4EM040X |
4 |
4 |
25 |
76 |
| SF4EM050X |
5 |
5 |
30 |
76 |
| SF4EM060X |
6 |
6 |
39 |
101 |
| SF4EM080X |
8 |
8 |
42 |
101 |
| SF4EM100X |
10 |
10 |
45 |
101 |
| SF4EM120X |
12 |
12 |
76 |
150 |
| SF4EM140X |
14 |
14 |
76 |
150 |
| SF4EM160X |
16 |
16 |
76 |
150 |
| SF4EM180X |
18 |
18 |
76 |
150 |
| SF4EM200X |
20 |
20 |
76 |
150 |
Endmill - 6 Flute Standard
| Item Code |
Cutting Dia. |
Shank Dia. |
Flute length |
Over all length |
| SF6EM060 |
6 |
6 |
19 |
63 |
| SF6EM080 |
8 |
8 |
21 |
63 |
| SF6EM100 |
10 |
10 |
22 |
70 |
| SF6EM120 |
12 |
12 |
25 |
75 |
| SF6EM140 |
14 |
14 |
30 |
76 |
| SF6EM160 |
16 |
16 |
32 |
76 |
| SF6EM180 |
18 |
18 |
35 |
100 |
| SF6EM200 |
20 |
20 |
40 |
100 |
